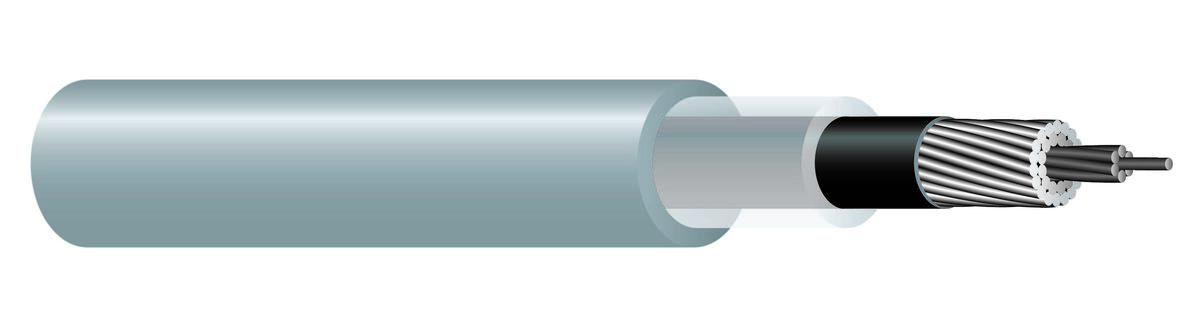

El alambre para árboles C7® de CAMV es un conductor cubierto autoportante con un núcleo compuesto de fibra de carbono que se utiliza en lugar del conductor desnudo en la distribución principal aérea. Instalado como conductor no aislado; sin embargo, la cubierta es efectiva para prevenir cortocircuitos directos y destellos instantáneos en caso de que las ramas de los árboles u otros objetos entren en contacto con los conductores. El alambre de árritos puede tener un efecto significativo en la prevención de incendios forestales causados por chispas de conductores primarios que abofetean o entran en contacto con las ramas de los árboles. Los cables de alambre de árbol pueden ser una solución efectiva para resolver problemas con circuitos conductores desnudos existentes sin la necesidad de alternativas como cables aéreos o subterráneos.
| Palabra clave | Tamaño (AWG o kcmil) | Trenzado | Grosor del aislamiento (pulgadas) (cm) | Diámetro total (pulgadas) (cm) | Peso total (lb/1000 pies) (kg/km) | Resistencia a la rotura nominal (lb) | Capacidad nominal de amperios a 130 °C (amp) |
|
15kV 15kV
|
2 AWG 2 AWG
|
6/1 6/1
|
0,165 0,42
|
0,646 1,64
|
178 265
|
3890 3890
|
257 257
|
|
15kV 15kV
|
2 AWG 2 AWG
|
7/1 7/1
|
0,165 0,42
|
0,652 1,66
|
182 271
|
5140 5140
|
258 258
|
|
15kV 15kV
|
1 AWG 1 AWG
|
6/1 6/1
|
0,165 0,42
|
0,687 1,74
|
208 310
|
5070 5070
|
296 296
|
|
15kV 15kV
|
1/0 1/0
|
6/1 6/1
|
0,165 0,42
|
0,728 1,85
|
240 357
|
6160 6160
|
341 341
|
|
15kV 15kV
|
2/0 2/0
|
6/1 6/1
|
0,165 0,42
|
0,777 1,97
|
282 420
|
7750 7750
|
393 393
|
|
15kV 15kV
|
3/0 3/0
|
6/1 6/1
|
0,165 0,42
|
0,832 2,11
|
333 496
|
9720 9720
|
454 454
|
|
15kV 15kV
|
4/0 4/0
|
6/1 6/1
|
0,165 0,42
|
0,893 2,27
|
396 589
|
12.200 12.200
|
524 524
|
|
15kV 15kV
|
266,8 266,8
|
18/1 18/1
|
0,165 0,42
|
0,938 2,38
|
440 655
|
8230 8230
|
598 598
|
|
15kV 15kV
|
266,8 266,8
|
24/7 24/7
|
0,165 0,42
|
0,96 2,44
|
455 677
|
12.800 12.800
|
602 602
|
|
15kV 15kV
|
266,8 266,8
|
26/7 26/7
|
0,165 0,42
|
0,975 2,48
|
465 692
|
15 400 15 400
|
605 605
|
|
15kV 15kV
|
266,8 266,8
|
30/7 30/7
|
0,165 0,42
|
0,995 2,53
|
480 714
|
20 000 20 000
|
609 609
|
|
15kV 15kV
|
336,4 336,4
|
18/1 18/1
|
0,165 0,42
|
1,013 2,57
|
527 784
|
10 300 10 300
|
691 691
|
|
15kV 15kV
|
336,4 336,4
|
24/7 24/7
|
0,165 0,42
|
1,044 2,65
|
549 817
|
16 600 16 600
|
697 697
|
|
15kV 15kV
|
336,4 336,4
|
26/7 26/7
|
0,165 0,42
|
1,053 2,67
|
556 827
|
19.200 19.200
|
699 699
|
|
15kV 15kV
|
336,4 336,4
|
30/7 30/7
|
0,165 0,42
|
1,061 2,69
|
566 842
|
23.400 23.400
|
701 701
|
|
15kV 15kV
|
397,5 397,5
|
18/1 18/1
|
0,165 0,42
|
1,073 2,73
|
603 897
|
12.200 12.200
|
767 767
|
|
15kV 15kV
|
397,5 397,5
|
24/7 24/7
|
0,165 0,42
|
1.113 2.83
|
632 941
|
20 200 20 200
|
776 776
|
|
15kV 15kV
|
397,5 397,5
|
26/7 26/7
|
0,165 0,42
|
1.112 2.82
|
633 942
|
22 300 22 300
|
776 776
|
|
15kV 15kV
|
397,5 397,5
|
30/7 30/7
|
0,165 0,42
|
1.145 2.91
|
661 984
|
30 300 30 30 300
|
784 784
|
|
15kV 15kV
|
477,0 477,0
|
18/1 18/1
|
0,165 0,42
|
1.145 2.91
|
701 1043
|
14 600 14 600
|
860 860
|
|
15kV 15kV
|
477,0 477,0
|
24/7 24/7
|
0,165 0,42
|
1.181 3.00
|
730 1086
|
23 600 23 600
|
869 869
|
|
15kV 15kV
|
477,0 477,0
|
26/7 26/7
|
0,165 0,42
|
1.179 2.99
|
730 1086
|
25.700 25.700
|
868 868
|
|
15kV 15kV
|
477,0 477,0
|
30/7 30/7
|
0,165 0,42
|
1.208 3.07
|
758 1128
|
34.400 34.400
|
875 875
|
|
15kV 15kV
|
556,5 556,5
|
18/1 18/1
|
0,170 0,43
|
1.219 3.10
|
805 1198
|
16 900 16 900
|
946 946
|
|
15kV 15kV
|
556,5 556,5
|
24/7 24/7
|
0,170 0,43
|
1.256 3.19
|
837 1246
|
27 100 27 100
|
955 955
|
|
15kV 15kV
|
556,5 556,5
|
26/7 26/7
|
0,170 0,43
|
1.26 3.20
|
842 1253
|
30 400 30 400
|
956 956
|
|
15kV 15kV
|
556,5 556,5
|
30/7 30/7
|
0,170 0,43
|
1.294 3.29
|
875 1302
|
40 800 40 800
|
965 965
|
|
15kV 15kV
|
636,0 636,0
|
18/1 18/1
|
0,170 0,43
|
1.28 3.25
|
900 1339
|
19 000 19 000
|
1029 1029
|
|
15kV 15kV
|
636,0 636,0
|
24/7 24/7
|
0,170 0,43
|
1.326 3.37
|
940 1399
|
31.500 31.500
|
1041 1041
|
|
15kV 15kV
|
636,0 636,0
|
26/7 26/7
|
0,170 0,43
|
1.34 3.40
|
954 1420
|
36 700 36 700
|
1045 1045
|
|
15kV 15kV
|
636,0 636,0
|
30/7 30/7
|
0,170 0,43
|
1.363 3.46
|
982 1461
|
43 600 43 600
|
1051 1051
|
|
15kV 15kV
|
795,0 795,0
|
24/7 24/7
|
0,180 0,46
|
1.442 3.66
|
1139 1695
|
36 700 36 700
|
1189 1189
|
|
15kV 15kV
|
795,0 795,0
|
26/7 26/7
|
0,180 0,46
|
1,469 3,73
|
1166 1735
|
44 600 44 600
|
1197 1197
|
|
15kV 15kV
|
795,0 795,0
|
30/7 30/7
|
0,180 0,46
|
1,503 3,82
|
1206 1795
|
54.100 54.100
|
1207 1207
|
|
15kV 15kV
|
795,0 795,0
|
45/7 45/7
|
0,180 0,46
|
1,425 3,62
|
1102 1640
|
26.700 26.700
|
1182 1182
|
|
25kV 25kV
|
2 AWG 2 AWG
|
6/1 6/1
|
0,265 0,67
|
0,846 2,15
|
275 409
|
3890 3890
|
252 252
|
|
25kV 25kV
|
2 AWG 2 AWG
|
7/1 7/1
|
0,265 0,67
|
0,852 2,16
|
279 415
|
5140 5140
|
253 253
|
|
25kV 25kV
|
1 AWG 1 AWG
|
6/1 6/1
|
0,265 0,67
|
0,887 2,25
|
309 460
|
5070 5070
|
290 290
|
|
25kV 25kV
|
1/0 1/0
|
6/1 6/1
|
0,265 0,67
|
0,928 2,36
|
347 516
|
6160 6160
|
333 333
|
|
25kV 25kV
|
2/0 2/0
|
6/1 6/1
|
0,265 0,67
|
0,977 2,48
|
395 588
|
7750 7750
|
384 384
|
|
25kV 25kV
|
3/0 3/0
|
6/1 6/1
|
0,265 0,67
|
1,032 2,62
|
453 674
|
9720 9720
|
442 442
|
|
25kV 25kV
|
4/0 4/0
|
6/1 6/1
|
0,265 0,67
|
1,093 2,78
|
524 780
|
12.200 12.200
|
510 510
|
|
25kV 25kV
|
266,8 266,8
|
18/1 18/1
|
0,265 0,67
|
1.138 2.89
|
573 853
|
8230 8230
|
581 581
|
|
25kV 25kV
|
266,8 266,8
|
24/7 24/7
|
0,265 0,67
|
1.16 2.95
|
591 880
|
12.800 12.800
|
585 585
|
|
25kV 25kV
|
266,8 266,8
|
26/7 26/7
|
0,265 0,67
|
1,175 2,98
|
603 897
|
15 400 15 400
|
588 588
|
|
25kV 25kV
|
266,8 266,8
|
30/7 30/7
|
0,265 0,67
|
1.195 3.04
|
621 924
|
20 000 20 000
|
592 592
|
|
25kV 25kV
|
336,4 336,4
|
18/1 18/1
|
0,265 0,67
|
1.213 3.08
|
671 999
|
10 300 10 300
|
671 671
|
|
25kV 25kV
|
336,4 336,4
|
24/7 24/7
|
0,265 0,67
|
1.244 3.16
|
696 1036
|
16 600 16 600
|
677 677
|
|
25kV 25kV
|
336,4 336,4
|
26/7 26/7
|
0,265 0,67
|
1.253 3.18
|
704 1048
|
19.200 19.200
|
679 679
|
|
25kV 25kV
|
336,4 336,4
|
30/7 30/7
|
0,265 0,67
|
1.261 3.20
|
715 1064
|
23.400 23.400
|
680 680
|
|
25kV 25kV
|
397,5 397,5
|
18/1 18/1
|
0,265 0,67
|
1.273 3.23
|
755 1124
|
12.200 12.200
|
745 745
|
|
25kV 25kV
|
397,5 397,5
|
24/7 24/7
|
0,265 0,67
|
1.313 3.34
|
788 1173
|
20 200 20 200
|
753 753
|
|
25kV 25kV
|
397,5 397,5
|
26/7 26/7
|
0,265 0,67
|
1.312 3.33
|
790 1176
|
22 300 22 300
|
753 753
|
|
25kV 25kV
|
397,5 397,5
|
30/7 30/7
|
0,265 0,67
|
1.345 3.42
|
821 1222
|
30 300 30 30 300
|
760 760
|
|
25kV 25kV
|
477,0 477,0
|
18/1 18/1
|
0,265 0,67
|
1.345 3.42
|
862 1283
|
14 600 14 600
|
835 835
|
|
25kV 25kV
|
477,0 477,0
|
24/7 24/7
|
0,265 0,67
|
1.381 3.51
|
895 1332
|
23 600 23 600
|
842 842
|
|
25kV 25kV
|
477,0 477,0
|
26/7 26/7
|
0,265 0,67
|
1,379 3,50
|
895 1332
|
25.700 25.700
|
842 842
|
|
25kV 25kV
|
477,0 477,0
|
30/7 30/7
|
0,265 0,67
|
1,408 3,58
|
926 1378
|
34.400 34.400
|
848 848
|
|
25kV 25kV
|
556,5 556,5
|
18/1 18/1
|
0,270 0,69
|
1.419 3.60
|
975 1451
|
16 900 16 900
|
917 917
|
|
25kV 25kV
|
556,5 556,5
|
24/7 24/7
|
0,270 0,69
|
1,456 3,70
|
1011 1505
|
27 100 27 100
|
926 926
|
|
25kV 25kV
|
556,5 556,5
|
26/7 26/7
|
0,270 0,69
|
1,46 3,71
|
1017 1513
|
30 400 30 400
|
927 927
|
|
25kV 25kV
|
556,5 556,5
|
30/7 30/7
|
0,270 0,69
|
1,494 3,79
|
1055 1570
|
40 800 40 800
|
935 935
|
|
25kV 25kV
|
636,0 636,0
|
18/1 18/1
|
0,270 0,69
|
1,48 3,76
|
1078 1604
|
19 000 19 000
|
997 997
|
|
25kV 25kV
|
636,0 636,0
|
24/7 24/7
|
0,270 0,69
|
1,526 3,88
|
1124 1673
|
31.500 31.500
|
1008 1008
|
|
25kV 25kV
|
636,0 636,0
|
26/7 26/7
|
0,270 0,69
|
1,54 3,91
|
1140 1697
|
36 700 36 700
|
1012 1012
|
|
25kV 25kV
|
636,0 636,0
|
30/7 30/7
|
0,270 0,69
|
1,563 3,97
|
1170 1741
|
43 600 43 600
|
1018 1018
|
|
25kV 25kV
|
795,0 795,0
|
24/7 24/7
|
0,270 0,69
|
1.622 4.12
|
1317 1960
|
36 700 36 700
|
1154 1154
|
|
25kV 25kV
|
795,0 795,0
|
26/7 26/7
|
0,270 0,69
|
1.649 4.19
|
1346 2003
|
44 600 44 600
|
1163 1163
|
|
25kV 25kV
|
795,0 795,0
|
30/7 30/7
|
0,270 0,69
|
1.683 4.27
|
1391 2070
|
54.100 54.100
|
1171 1171
|
|
25kV 25kV
|
795,0 795,0
|
45/7 45/7
|
0,270 0,69
|
1.605 4.08
|
1277 1900
|
26.700 26.700
|
1149 1149
|
|
35kV y 35kV
|
1/0 1/0
|
6/1 6/1
|
0,315 0,80
|
1,028 2,61
|
409 609
|
6160 6160
|
330 330
|
|
35kV y 35kV
|
2/0 2/0
|
6/1 6/1
|
0,315 0,80
|
1,077 2,74
|
460 685
|
7750 7750
|
380 380
|
|
35kV y 35kV
|
3/0 3/0
|
6/1 6/1
|
0,315 0,80
|
1.132 2.88
|
522 777
|
9720 9720
|
437 437
|
|
35kV y 35kV
|
4/0 4/0
|
6/1 6/1
|
0,315 0,80
|
1.193 3.03
|
596 887
|
12.200 12.200
|
504 504
|
|
35kV y 35kV
|
266,8 266,8
|
18/1 18/1
|
0,315 0,80
|
1.238 3.14
|
649 966
|
8230 8230
|
574 574
|
|
35kV y 35kV
|
266,8 266,8
|
24/7 24/7
|
0,315 0,80
|
1.26 3.20
|
668 994
|
12.800 12.800
|
578 578
|
|
35kV y 35kV
|
266,8 266,8
|
26/7 26/7
|
0,315 0,80
|
1,275 3,24
|
681 1013
|
15 400 15 400
|
581 581
|
|
35kV y 35kV
|
266,8 266,8
|
30/7 30/7
|
0,315 0,80
|
1,295 3,29
|
699 1040
|
20 000 20 000
|
584 584
|
|
35kV y 35kV
|
336,4 336,4
|
18/1 18/1
|
0,315 0,80
|
1.313 3.34
|
751 1118
|
10 300 10 300
|
662 662
|
|
35kV y 35kV
|
336,4 336,4
|
24/7 24/7
|
0,315 0,80
|
1.344 3.41
|
778 1158
|
16 600 16 600
|
668 668
|
|
35kV y 35kV
|
336,4 336,4
|
26/7 26/7
|
0,315 0,80
|
1,353 3,44
|
787 1171
|
19.200 19.200
|
670 670
|
|
35kV y 35kV
|
336,4 336,4
|
30/7 30/7
|
0,315 0,80
|
1.361 3.46
|
798 1188
|
23.400 23.400
|
671 671
|
|
35kV y 35kV
|
397,5 397,5
|
18/1 18/1
|
0,315 0,80
|
1,373 3,49
|
838 1247
|
12.200 12.200
|
735 735
|
|
35kV y 35kV
|
397,5 397,5
|
24/7 24/7
|
0,315 0,80
|
1,413 3,59
|
874 1301
|
20 200 20 200
|
743 743
|
|
35kV y 35kV
|
397,5 397,5
|
26/7 26/7
|
0,315 0,80
|
1,412 3,59
|
876 1304
|
22 300 22 300
|
743 743
|
|
35kV y 35kV
|
397,5 397,5
|
30/7 30/7
|
0,315 0,80
|
1,445 3,67
|
910 1354
|
30 300 30 30 300
|
750 750
|
|
35kV y 35kV
|
477,0 477,0
|
18/1 18/1
|
0,315 0,80
|
1,445 3,67
|
950 1414
|
14 600 14 600
|
823 823
|
|
35kV y 35kV
|
477,0 477,0
|
24/7 24/7
|
0,315 0,80
|
1,481 3,76
|
985 1466
|
23 600 23 600
|
831 831
|
|
35kV y 35kV
|
477,0 477,0
|
26/7 26/7
|
0,315 0,80
|
1.479 3.76
|
985 1466
|
25.700 25.700
|
830 830
|
|
35kV y 35kV
|
477,0 477,0
|
30/7 30/7
|
0,315 0,80
|
1,508 3,83
|
1018 1515
|
34.400 34.400
|
837 837
|
|
35kV y 35kV
|
556,5 556,5
|
18/1 18/1
|
0,320 0,81
|
1,519 3,86
|
1067 1588
|
16 900 16 900
|
905 905
|
|
35kV y 35kV
|
556,5 556,5
|
24/7 24/7
|
0,320 0,81
|
1,556 3,95
|
1106 1646
|
27 100 27 100
|
913 913
|
|
35kV y 35kV
|
556,5 556,5
|
26/7 26/7
|
0,320 0,81
|
1,56 3,96
|
1112 1655
|
30 400 30 400
|
914 914
|
|
35kV y 35kV
|
556,5 556,5
|
30/7 30/7
|
0,320 0,81
|
1,594 4,05
|
1152 1714
|
40 800 40 800
|
922 922
|
|
35kV y 35kV
|
636,0 636,0
|
18/1 18/1
|
0,320 0,81
|
1,58 4,01
|
1174 1747
|
19 000 19 000
|
983 983
|
|
35kV y 35kV
|
636,0 636,0
|
24/7 24/7
|
0,320 0,81
|
1.626 4.13
|
1223 1820
|
31.500 31.500
|
994 994
|
|
35kV y 35kV
|
636,0 636,0
|
26/7 26/7
|
0,320 0,81
|
1.64 4.17
|
1240 1845
|
36 700 36 700
|
998 998
|
|
35kV y 35kV
|
636,0 636,0
|
30/7 30/7
|
0,320 0,81
|
1,663 4,22
|
1272 1893
|
43 600 43 600
|
1003 1003
|
|
35kV y 35kV
|
795,0 795,0
|
24/7 24/7
|
0,320 0,81
|
1.722 4.37
|
1422 2116
|
36 700 36 700
|
1137 1137
|
|
35kV y 35kV
|
795,0 795,0
|
26/7 26/7
|
0,320 0,81
|
1,749 4,44
|
1454 2164
|
44 600 44 600
|
1145 1145
|
|
35kV y 35kV
|
795,0 795,0
|
30/7 30/7
|
0,320 0,81
|
1,783 4,53
|
1500 2232
|
54.100 54.100
|
1154 1154
|
|
35kV y 35kV
|
795,0 795,0
|
45/7 45/7
|
0,320 0,81
|
1,705 4,33
|
1382 2057
|
26.700 26.700
|
1132 1132
|
El alambre para árboles CAMV? C7® de Southwire cumple o supera todas las especificaciones ICEA aplicables y ASTM B941
Conductor de aluminio resistente a la temperatura concéntrico trenzado de 3-Layer, reforzado con compuestos (ZTACCR/C7-TS®), protector de conductor de polietileno reticulado (XLPE), capa interna de polietileno de baja densidad reticulado (LDXLPE) y capa exterior de polietileno reticulado de alta densidad (TRHDXLPE) gris o negro.
